USB Port Properties

Select a shared USB port and click Port Properties button.

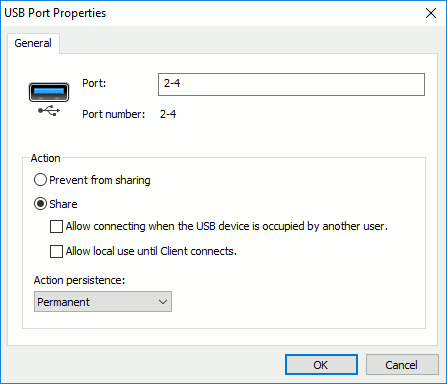

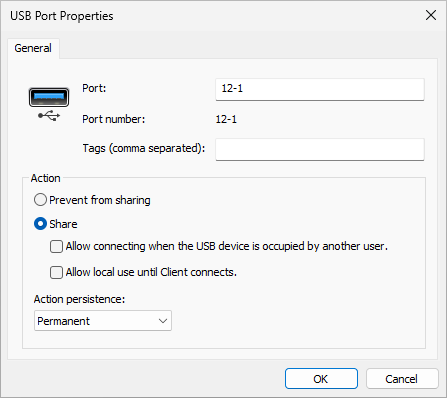

USB Port Properties


The number of the shared port. The first digit corresponds to the number of the USB device host controller. The second one indicates the port number of the root hub. All following digits represent the port numbers of the external USB hub.


Usually when a USB port is being shared, this option gets the value Share. But if the port is shared automatically, (comes under the rule) and you don't want it to be shared, change this option to Prevent from sharing.

Allow connecting when the USB device is occupied by another user — enabling this option allows users to connect a USB device inserted in the shared port even if the device is occupied by another user. In this case the device will be disconnected from the user who is currently working with the device.

Action persistence

Permanent — the selected action (e.g., Prevent from sharing) is permanent. It is applied automatically at every system startup.

Until restart — the selected action is valid until the system reboot.
